產品編號：GEGZ…ES 31.75～139.7
??????????GEGZ...ES-2RS 31.75～139.7
滑動磨擦副： 鋼/鋼
產品特點：GEGZ...ES 產品特點與GEG…ES系列相同，但為英制尺寸。
??????????GEGZ...ES-2RS 產品特點與GEG…ES-2RS系列相同，但為英制尺寸。
使用溫度范圍：GEGZ...ES -50℃～+150℃
??????????????GEGZ...ES-2RS -30℃～+130℃

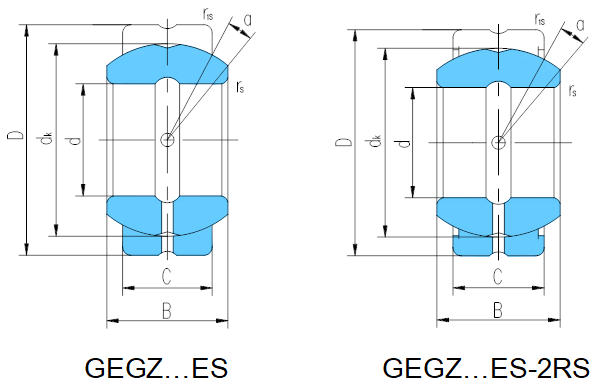

軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm/inch | 額定載荷 Load ratings kN | 重 量 Weight ≈kg | |||||||||
d | D | B | C | dk | rs min | r1s min | α? ≈ | 動載荷 Dynamic | 靜載荷 Static | |||
GEGZ31ES | GEGZ31ES-2RS | 31.750 | 61.913 | 35.306 | 28.575 | 54.7 | 0.6 | 1 | 8 | 125 | 375 | 0.454 |
1.25 | 2.4375 | 1.39 | 1.125 | 2.154 | 0.024 | 0.04 | ||||||
GEGZ38ES | GEGZ38ES-2RS | 38.100 | 71.438 | 40.132 | 33.325 | 63.9 | 0.6 | 1 | 7 | 170 | 510 | 0.726 |
1.5 | 2.8125 | 1.58 | 1.312 | 2.516 | 0.024 | 0.04 | ||||||
GEGZ44ES | GEGZ44ES-2RS | 44.450 | 80.963 | 46.228 | 38.100 | 73 | 0.6 | 1 | 7 | 224 | 670 | 1.14 |
1.75 | 3.1875 | 1.82 | 1.5 | 2.874 | 0.024 | 0.04 | ||||||
GEGZ50ES | GEGZ50ES-2RS | 50.800 | 90.488 | 52.578 | 42.850 | 82 | 0.6 | 1 | 8 | 280 | 850 | 1.68 |
2 | 3.5625 | 2.07 | 1.687 | 3.228 | 0.024 | 0.04 | ||||||
GEGZ57ES | GEGZ57ES-2RS | 57.150 | 100.013 | 58.877 | 47.625 | 92 | 0.6 | 1 | 8 | 355 | 1060 | 2.01 |
2.25 | 3.9375 | 2.318 | 1.875 | 3.622 | 0.024 | 0.04 | ||||||
GEGZ63ES | GEGZ63ES-2RS | 63.500 | 111.125 | 64.643 | 52.375 | 100 | 1 | 1 | 8 | 415 | 1250 | 2.95 |
2.5 | 4.375 | 2.545 | 2.062 | 3.937 | 0.04 | 0.04 | ||||||
GEGZ69ES | GEGZ69ES-2RS | 69.850 | 120.650 | 70.866 | 57.150 | 109.5 | 1 | 1 | 8 | 500 | 1500 | 3.63 |
2.75 | 4.75 | 2.79 | 2.25 | 4.311 | 0.04 | 0.04 | ||||||
GEGZ76ES | GEGZ76ES-2RS | 76.200 | 130.175 | 76.759 | 61.900 | 119 | 1 | 1 | 8 | 585 | 1760 | 4.36 |
3 | 5.125 | 3.022 | 2.437 | 4.685 | 0.04 | 0.04 | ||||||
GEGZ82ES | GEGZ82ES-2RS | 82.550 | 139.700 | 82.931 | 66.675 | 128 | 1 | 1 | 8 | 680 | 2040 | 5.31 |
3.25 | 5.5 | 3.265 | 2.625 | 5.039 | 0.04 | 0.04 | ||||||
GEGZ88ES | GEGZ88ES-2RS | 88.900 | 149.225 | 90.424 | 71.425 | 137 | 1 | 1 | 9 | 780 | 2360 | 6.81 |
3.5 | 5.875 | 3.56 | 2.812 | 5.394 | 0.04 | 0.04 | ||||||
GEGZ95ES | GEGZ95ES-2RS | 95.250 | 158.750 | 94.945 | 76.200 | 146 | 1 | 1 | 9 | 900 | 2650 | 8.85 |
3.75 | 6.25 | 3.738 | 3 | 5.748 | 0.04 | 0.04 | ||||||
GEGZ101ES | GEGZ101ES-2RS | 101.600 | 177.800 | 107.315 | 85.725 | 164.5 | 1 | 1 | 9 | 1120 | 3400 | 10.2 |
4 | 7 | 4.225 | 3.375 | 6.476 | 0.04 | 0.04 | ||||||
GEGZ114ES | GEGZ114ES-2RS | 114.300 | 196.850 | 119.126 | 95.250 | 183 | 1 | 1 | 9 | 1400 | 4150 | 13.6 |
4.5 | 7.75 | 4.69 | 3.75 | 7.205 | 0.04 | 0.04 | ||||||
GEGZ139ES | GEGZ139ES-2RS | 139.700 | 222.250 | 125.730 | 104.775 | 207 | 1 | 1 | 6 | 1730 | 5200 | 20.4 |
5.5 | 8.75 | 4.95 | 4.125 | 8.15 | 0.04 | 0.04 | ||||||
